The result of our expertise, the UBO Nature technology is a smart, compact, ready-to-connect module designed to seamlessly integrate with your existing tub series. It is the ideal solution for professional use in high-end spas, Nordic baths, and mini-pools.
The UBO Nature series combines high-power UV-C disinfection with an integrated active oxygen dosing pump to eliminate bacteria without harsh chemicals. The OXY model offers a factory-tested 304L stainless-steel loop for fast “Plug & Play” integration into existing hydraulics. For advanced control, the Essential model adds a 4.3″ touchscreen and real-time mobile app monitoring. Together, they deliver crystal-clear, soft, and safe water for an unparalleled wellness experience.
UBO Nature anti-bacterial treatment
Powerful
UBO Nature eliminates bacteria, viruses, fungi, and other parasites.
Healthy
UBO Nature is designed to ensure optimal disinfection while neutralizing active elements, providing perfectly treated and safe water.
Ecological
After fulfilling its antibacterial role, the treatment ensures pure and healthy water, free from persistent residues.
UBO Nature System – Existing tub Series

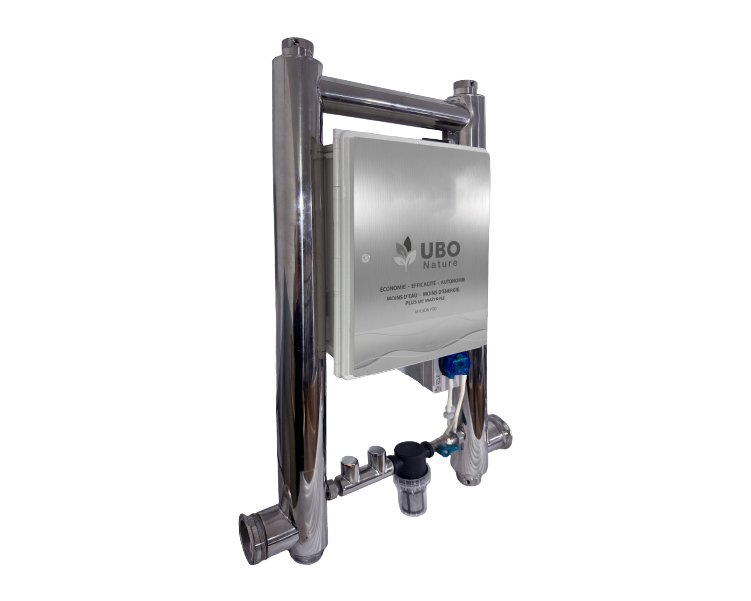

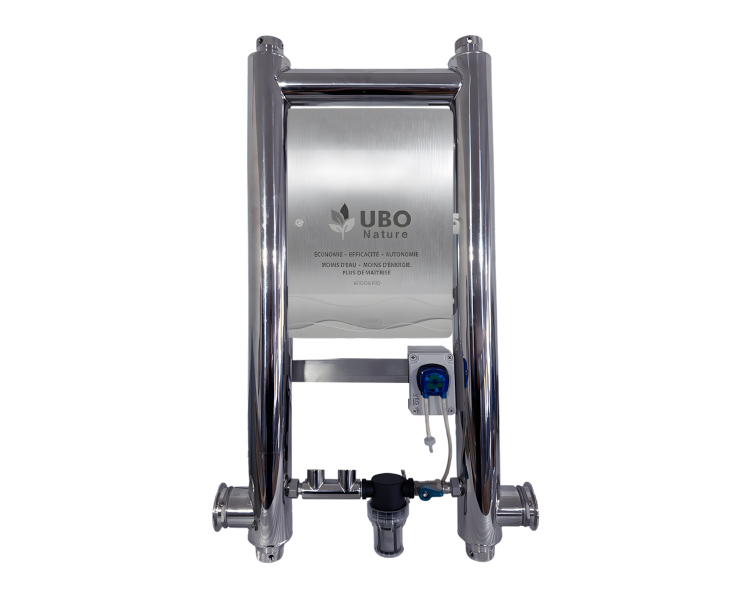

UBO Nature OXY
UBO Nature OXY is a compact stainless-steel module, ready to connect, designed to enhance the microbiological treatment of water for small to mid-size basins.” to “UBO Nature OXY is a compact, ready-to-connect stainless-steel module that ensures reliable microbiological water treatment for small to mid-size basins.
System dimensions : W 49 x L 10 x H 90 cm
Net weight: 13 kg
Power consumption : 190 W
Information
| Bacteriological Treatment System (killing bacterias) System automatically inject the H₂O₂ or Cl as per time schedule |
✔ |
| Dosing Pump H₂O₂ | ✔ |
| High-power UV-C lamp for continuous disinfection | ✔ |
| Specific UV lamp for free radical generation | ✔ |
| PLC | ✔ |

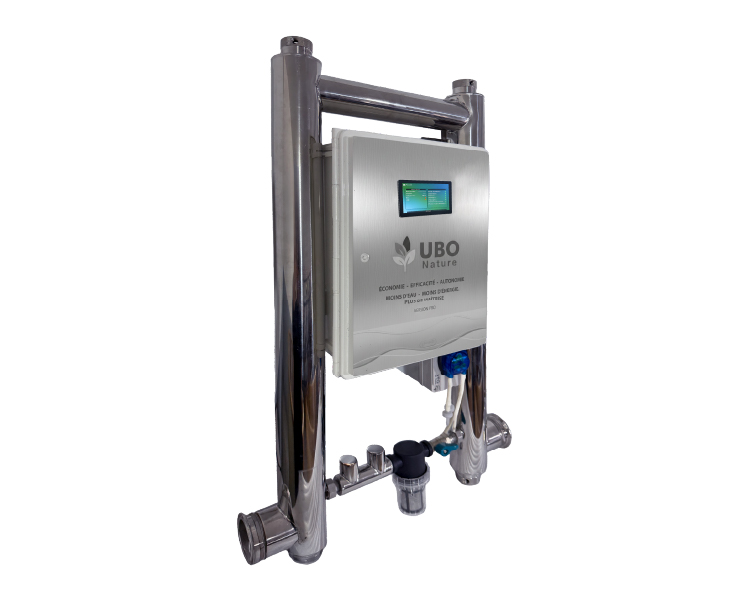

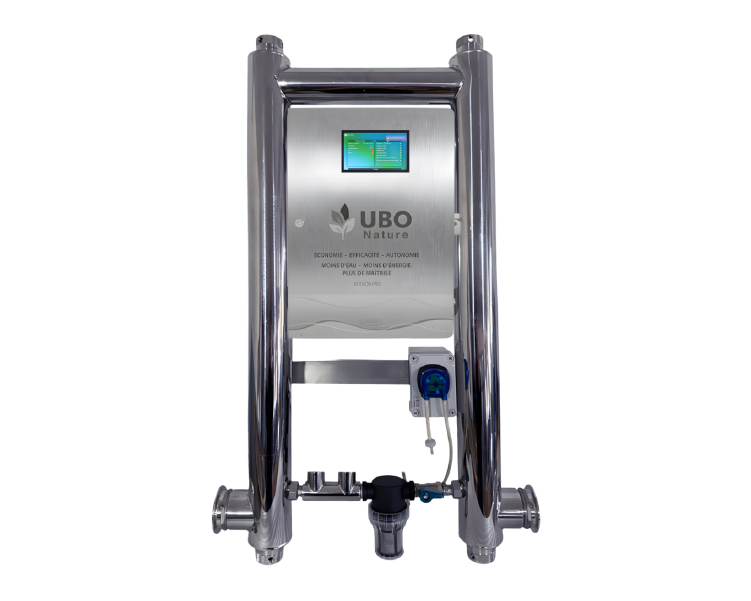

UBO Nature Essential
UBO Nature Essential is a smart, compact, ready-to-connect stainless-steel module that ensures reliable microbiological water treatment for small to mid-size basins.
System dimensions : W 49 x L 10 x H 90 cm
Net Weight: 15 kg
Power consumption : 210 W
Information
| Bacteriological Treatment System (killing bacterias) System automatically inject the H₂O₂ or Cl as per time schedule |
✔ |
| Dosing Pump H₂O₂ | ✔ |
| High-power UV-C lamp for continuous disinfection | ✔ |
| Specific UV lamp for free radical generation | ✔ |
| 8 Relay Board | ✔ |
| Online control and monitoring | ✔ |
Options
- PH/ORP (mV)
- PH / ORP / Free Chlorine (mg/l) (amperometric probe)
A skid-mounted filtration system specially designed for spas, Nordic baths, hot tubs, and mini-pools up to 150 m³
Operating principle
- Our system is based on advanced technology that combines multiple treatment stages to optimally purify water. Using specific processes, it effectively disinfects the water while ensuring no active elements remain, providing a reliable, high-performance, and environmentally friendly solution.
| UBO Nature OXY | UBO Nature Essential | |
|---|---|---|
| Inlet / outlet for connection to the Hot Tub | 3 inches ferrule | 3 inches ferrule |
| High Power UV-C lamps | x 1 | x 1 |
| Integrated dosing pump | x 1 | x 1 |
| Complete automatic management of bacteriological water treatment | Controlled by PLC (Programmable Logic Controller) No online connection |
Controlled by an 8-channel relay board Real-time remote switching and control for system On/Off Control |
| Control and Monitoring | No |
Through touchscreen 4.3″ and Android/iOS app. |
| Circuit breakers for all important electrical elements | Included | Included |
| Electromagnetic contactors with overheating protection for the pumps | Included | Included |
