Systems for Hot Tub

Ultra-Bio-Ozone® Technology

UBO systems are based on an ultrathin filtration of 1 micron thanks to an ionized filtering medium, a powerful pump allowing the water to be renewed at a high frequency and the patented bacteriological treatment, without the addition of residual chemicals.

hot tub systems, spa filtration skid

System STANDARD

Complete filtration and bacteriological treatment (Spa filtration skid)

System dimensions : H83 x L75 x D69 cm

Weight in kg include filter media : 67 kg

Single-speed circulation pump : Flow 10 m3/h

Information

Stainless steel filter with filter media Filter 44x32x69 cm Filter media: 45 kg
Filter backwash Manual backwash
Inlet / outlet for connection to the Hot Tub 2 inches ferrule
Bacteriological treatment
Stainless steel UV sterilizer Yes, 48W
Stainless steel ozone generator No
Ozone injection system No
Contact chamber No
Ozone production No
Peristaltic pump and injection point, managed by PLC Yes
Electrical Heater, 3 kW 1
Temperature management Included

Complete waterproof double door electrical box including:

  • Complete automatic management of bacteriological water treatment controlled by PLC (Programmable Logic Controller): pump, UV, filtration etc.
  • Hourly management of the filtration pump
  • ELB (30mA)
  • Circuit breakers for all important electrical elements
  • Electromagnetic contactors with overheating protection for the pumps
Included
304L stainless steel piping and connectors
Optionally available in 316L stainless steel

Options

Jacuzzi treatment skid



  • Under/over voltage protection
  • Automatic refill for Hot Tub
  • 2nd 3kW heater
  • Smartphone monitoring
  • Massage function (for 2 or 4 seat)
  • Insulating cover box for the system (square shape)
  • Control stand-by filtration for night-time (night-time switch)
hot tub system, jacuzzi treatment skid

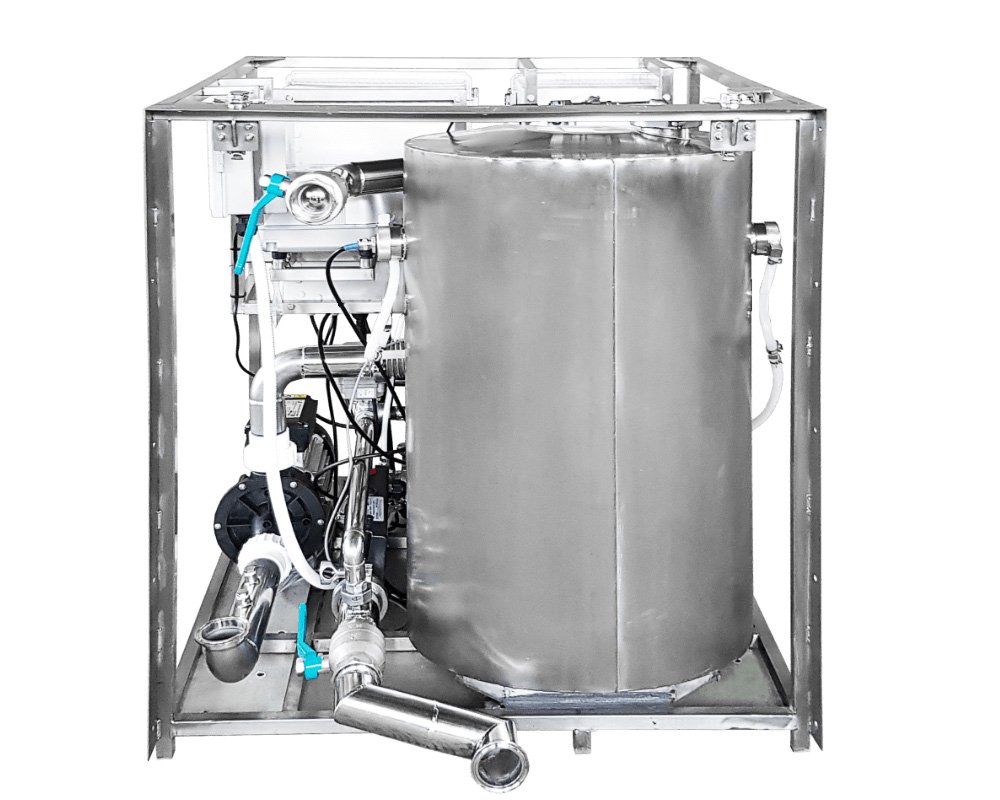

System STANDARD PLUS

Complete filtration and bacteriological chlorine-free treatment (Spa filtration skid)

System dimensions : H83 x L75 x D69 cm

Weight in kg include filter media : 72 kg

Single-speed circulation pump : Flow 10 m3/h

Information

Stainless steel filter with filter media Filter 44x32x69 cm Filter media: 45 kg
Filter backwash Manual backwash
Inlet / outlet for connection to the Hot Tub 2 inches ferrule
Bacteriological treatment Ultra-Bio-Ozone® (Patent EP 2785648 *)
Stainless steel UV sterilizer Yes, 48W
Stainless steel ozone generator Yes, 48W
Ozone injection system Included
Contact chamber No
Ozone production 0.5-1 g/h
Peristaltic pump and injection point, managed by PLC Yes
Electrical Heater, 3 kW 1
Temperature management Included

Complete waterproof double door electrical box including:

  • Complete automatic management of bacteriological water treatment controlled by PLC (Programmable Logic Controller): pump, UV, filtration etc.
  • Hourly management of the filtration pump
  • ELB (30mA)
  • Circuit breakers for all important electrical elements
  • Electromagnetic contactors with overheating protection for the pumps
Included
304L stainless steel piping and connections
Optionally available in 316L stainless steel

Options

Jacuzzi treatment skid



  • Under/over voltage protection
  • Automatic refill for Hot Tub
  • 2nd 3kW heater
  • Smartphone monitoring
  • Massage function (for 2 or 4 seat)
  • Insulating cover box for the system (circle shape or square shape)
  • Control stand-by filtration for night-time (night-time switch)
spa filtration skid

System PERFORMANCE

Complete filtration and bacteriolgical chlorine-free treatment (Hot Tub filtration skid)

System dimensions : H102 x L134 x D91 cm

Weight in kg include filter media : 174 kg

Single-speed circulation pump : Flow 10 m3/h

Information

Stainless steel filter with filter media Filter 44x32x80 cm Filter media: 75 kg
Filter backwash Manual backwash
Inlet / outlet for connection to the Hot Tub 2 inches ferrule
Bacteriological treatment Ultra-Bio-Ozone® (Patent EP 2785648 *)
Stainless steel UV sterilizer Yes, 105W
Stainless steel ozone generator Yes, 80W
Ozone injection system Included
Contact chamber Yes
Ozone production 1-2 g/h
Electrical Heater, 3 kW 1
Temperature management Included

Complete waterproof double door electrical box including:

  • Complete automatic management of bacteriological water treatment controlled by PLC (Programmable Logic Controller): pump, UV, Ozone generator, ozone injection system, filtration etc.
  • Hourly management of the filtration pump
  • ELB (30mA)
  • Circuit breakers for all important electrical elements
  • Electromagnetic contactors with overheating protection for the pumps
Included
304 stainless steel piping and connections
Optionally available in 316L stainless steel

Options

skid bacteriological treatment and filtration on skid

  • The “PH”, “ORP” or “PH/ORP” controller in complete kit, installed on the system includes: probe(s), injection pump(s) and injection point(s) (function for establishments receiving the public, when the legislation requires the use of these products)
  • Ozone boost option
  • Under/over voltage protection
  • Automatic refill for Hot Tub
  • 2nd 3kW heater
  • Smartphone monitoring
  • Massage function (for 2 or 4 seat)
  • Insulating cover box (circle shape or square shape)
  • Control stand-by filtration for night-time (night-time switch)
jacuzzi treatment skid

Performance Pro System

Complete filtration and bacteriolgical chlorine-free treatment (Spa filtration skid)

System dimensions : H102 x L134 x D91 cm

Weight in kg include filter media : 224 kg

Single-speed circulation pump : Flow 10 m3/h

Information

Stainless steel filter with filter media Filter 54x39x80 cm Filter media: 100 kg
Filter backwash Manual backwash
Inlet / outlet for connection to the Hot Tub 2 inches ferrule
Bacteriological treatment Ultra-Bio-Ozone® (Patent EP 2785648 *)
Stainless steel UV sterilizer Yes, 105W
Stainless steel ozone generator Yes, 160W
Ozone injection system Included
Contact chamber Yes
Ozone production 2-4 g/h
Electrical Heater, 3 kW 1
Temperature management Included

Complete waterproof double door electrical box including:

  • Complete automatic management of bacteriological water treatment controlled by PLC (Program Logic Controller): pump, UV, Ozone generator, ozone injection system, filtration etc.
  • Hourly management of the filtration pump
  • ELB (30mA)
  • Circuit breakers for all important electrical elements
  • Electromagnetic contactors with overheating protection for the pumps
  • Control stand-by filtration for night time (night time switch)
Included
PH and ORP regulator with two peristaltic injection pumps and two probes (for public establishments, when legislation requires the use of these products) Included
Control stand-by filtration for night-time (night-time switch) Included
304 stainless steel piping and connections
Optionally available in 316L stainless steel

Options

Jacuzzi skid filtration

  • The “PH”, “ORP” or “PH/ORP” controller in complete kit, installed on the system includes: probe(s), injection pump(s) and injection point(s) (function for establishments receiving the public, when the legislation requires the use of these products)
  • Ozone boost option
  • Under/over voltage protection
  • Automatic refill for Hot Tub
  • 2nd 3kW heater
  • Smartphone monitoring
  • Massage function (for 2 or 4 seat)
  • Insulating cover box (circle shape or square shape)
  • Control stand-by filtration for night-time (night-time switch)

Skid filtration treatment system

*Patent principle 2 operating modes :

  • Mode 1 normal : when bathers are in, the device creates and destroys ozone in the water before leaving the system (no ozone released).
  • Mode 2 Ozone Shock : when there is no presence of swimmers, for example at night, this mode makes it possible to completely replace any residual chemical product.

Powerful

Ultra-Bio-Ozone® eradicates bacteria, viruses, fungi and other parasites.

Healthy

Ultra-Bio-Ozone® is equipped with a device that eliminates all traces of ozone before it can escape from the system.

Ecological

After fulfilling its antibacterial mission, the ozone (O3) molecule returns to its original state: oxygen (O2).

Information system hot tub and spa STANDARD STANDARD PLUS PERFORMANCE PERFORMANCE PRO
Stainless steel filter with filter media Filter 44x32x69 cm
Filter media: 45 kg
Filter 44x32x69 cm
Filter media: 45 kg
Filter 44x32x80 cm
Filter media: 75 kg
Filter 54x39x80 cm
Filter media: 100 kg
Filter backwash Manual backwash Manual backwash Manual backwash Manual backwash
Inlet / outlet for connection to the Hot Tub 2 inches ferrule 2 inches ferrule 2 inches ferrule 2 inches ferrule
Stainless steel UV sterilizer Yes, 48W Yes, 48W Yes, 105W Yes, 105W
Stainless steel ozone generator No Yes, 48W Yes, 80W Yes, 160W
Ozone injection system No Included Included Included
Contact chamber No No Yes Yes
Ozone production No 0.5-1 g/h 1-2 g/h 2-4 g/h
Peristaltic pump and injection point, managed by PLC Yes Yes No No
Electrical Heater, 3 kW 1 1 1 1
Temperature management Included Included Included Included
Complete waterproof double door electrical box including:
Complete automatic management of bacteriological water treatment controlled by PLC (Programmable Logic Controller): Included: Pump, UV, filtration etc. Included: Pump, UV, filtration etc. Included: Pump, UV, Ozone generator, ozone injection system, filtration etc. Included: Pump, UV, Ozone generator, ozone injection system, filtration etc.
Hourly management of the filtration pump Included Included Included Included
ELB (30mA) Included Included Included Included
Circuit breakers for all important electrical elements Included Included Included Included
Electromagnetic contactors with overheating protection for the pumps Included Included Included Included
Control stand-by filtration for night time (night time switch) No No No Included
PH and ORP regulator with two peristaltic injection pumps and two probes (for public establishments, when legislation requires the use of these products) No No No Included
